Constant Force Spring Design, Applications & Manufacturers: Complete Guide

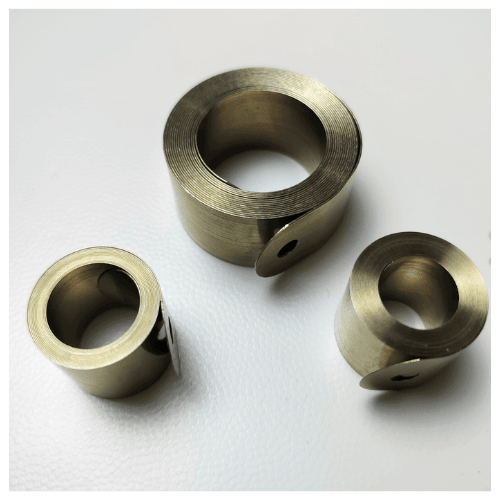

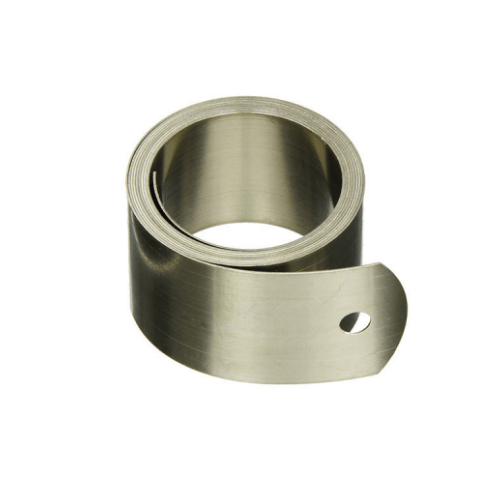

What Is a Constant Force Spring?
A constant force spring is a specialized flat coil spring engineered to deliver a nearly uniform output force throughout its entire extension. Unlike traditional compression or tension springs, where force increases with deflection, constant force springs maintain stable force, making them ideal for applications requiring smooth, controlled motion over long distances.
Typically made from pre-stressed stainless steel strip tightly wound onto a drum, these springs generate force as the material attempts to return to its original coiled shape when extended. The result is a compact, lightweight, and highly reliable energy storage solution.
Key Characteristics:
✅ Nearly constant force over the full stroke
✅ Compact, space-saving design
✅ Long operational life (up to millions of cycles)
✅ Smooth, predictable motion
✅ High repeatability in cyclic applications
How Constant Force Springs Work
The working principle is based on the elastic deformation of a pre-stressed metal ribbon.
During manufacturing, a thin strip of spring steel is tightly wound onto a drum under tension, creating a "set" that stores mechanical energy. When the free end is pulled, the strip uncoils with a steady return force as it attempts to rewind. This behavior enables consistent energy delivery over long extensions.
Typical Operation Cycle:
Rest Position: Spring stored as a tightly wound coil.
Extension: Applied force uncoils the strip from the drum.
Force Generation: Material elasticity produces a uniform return force.
Retraction: Upon release, the spring rewinds automatically.
This unique characteristic makes constant force springs ideal for retractors, counterbalances, and tensioning systems.
Materials & Surface Finishes
Material selection directly impacts performance, durability, and cost. We offer multiple options to match your application requirements.
| Material | Grade | Key Advantages | Typical Applications |
Stainless Steel | SUS301, SUS304, SUS316 | Excellent corrosion resistance, high fatigue life, long service life | Medical devices, outdoor equipment, marine environments |
High Carbon Spring Steel | Ck67, Ck75 | High load capacity, good fatigue life, cost-effective | Industrial machinery, automotive systems (with coating) |
Surface Finishing Options:
To enhance durability and corrosion resistance, we offer various surface treatments:
Electropolishing – Improves surface finish and corrosion resistance
Passivation – Removes free iron, enhances stainless steel properties
Nickel Plating – Adds wear and corrosion protection
Zinc Coating – Cost-effective corrosion protection (available in clear or yellow)
Industry Applications
Constant force springs are widely used across multiple industries due to their stable force output and compact design.
Industry
Application Examples
Cable Management | Power cable retractors, data cable reels, medical cable systems |

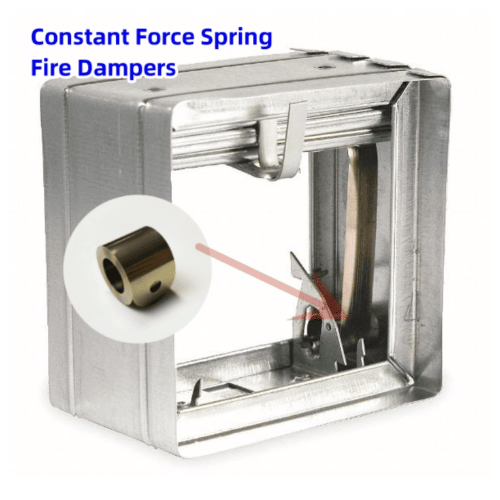

HVAC & Fire Safety | Fire damper actuators, smoke control systems (emergency closing) |
Medical Devices | Diagnostic equipment, surgical instruments, patient positioning systems |
Industrial Equipment | Counterbalance systems, tool balancers, automatic retractors |
Retail & Display | Shelf pusher systems, merchandise feeders, vending machine mechanisms |
Automotive | Seat belt retractors, window regulators, pedal mechanisms |
Benefits Over Traditional Springs
Compared with conventional compression or torsion springs, constant force springs offer several distinct advantages:
| Feature | Benefit |
Constant Force Output | Predictable, uniform performance throughout stroke |
Compact Energy Storage | High energy density in minimal space |
Long Cycle Life | Engineered for tens of thousands to millions of cycles |
Smooth Operation | Eliminates shock loads and vibration |
High Reliability | Simple design, minimal wear points |

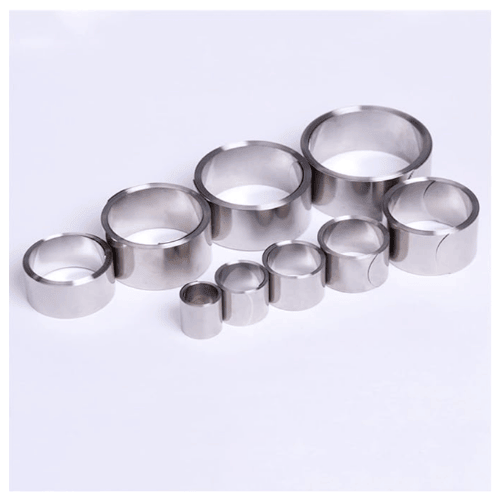

Custom Manufacturing Capabilities
Many industrial applications require custom-engineered constant force springs. At Dongguan Seme Precision Hardware Co., Ltd., we specialize in designing and manufacturing springs to your exact specifications.
Customizable Parameters:
Material: Stainless steel (SUS301, 304, 316) or high carbon steel
Dimensions: Strip thickness, width, coil diameter
Performance: Output force (N), extension length (mm)
Surface Treatment: As specified above
Our Manufacturing Process:
Engineering Consultation – We review your requirements and provide design recommendations.
Prototyping – Fast sample turnaround for testing and validation.
Production – Precision manufacturing with strict quality control.

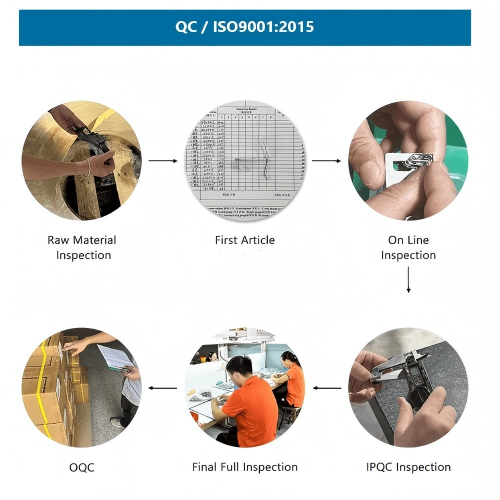

Quality Assurance – 100% inspection ensures consistent performance.
With advanced production equipment, experienced engineering support, and a commitment to quality, we deliver reliable solutions to customers worldwide.
Request a Free Quote Today
Ready to upgrade your constant force springs？
Contact Dongguan Seme Precision Hardware Co., Ltd. today to discuss your custom spring project. Our engineering team is ready to provide a free consultation and competitive quote.
📧 Email: [email protected]
🌐 Website: https://www.semehardware.com
📞 Phone: +0086 186 6511 1545
