SEME Constant Force Springs for Cable Applications

Overview

SEME Constant Force Springs are precision-engineered solderless connections designed for use in earthing, grounding, and cable management applications. They provide a uniform radial pressure on cables, ensuring reliable connection of cable screens, armour wires, or copper braids in medium voltage terminations and other industrial cable systems.

Made from high-quality stainless steel (Type 301/302), our springs are compatible with all metallic cable screens and armour types. They are suitable for use with heat shrink, cold shrink, and resin-based cable joints and repair kits.

These springs are RoHS 2011/65/EU compliant and have a 10-year shelf life under proper storage conditions (-50ºC to +50ºC, <75% relative humidity).

Typical Applications

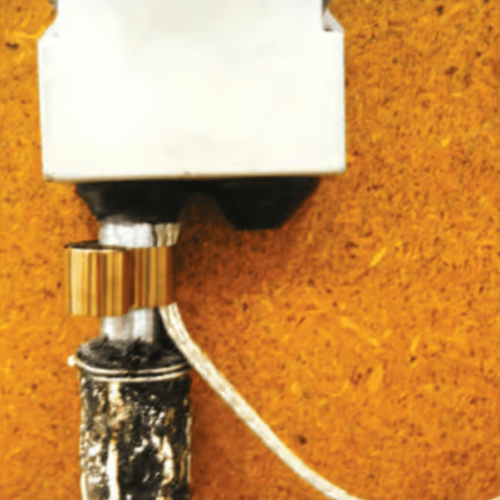

1. Earthing & Grounding Connections

• Apply uniform radial pressure to cable screens and armour wires for secure earthing

• Used on lead or aluminium cable sheaths

• Ideal for medium voltage terminations where reliable grounding is required

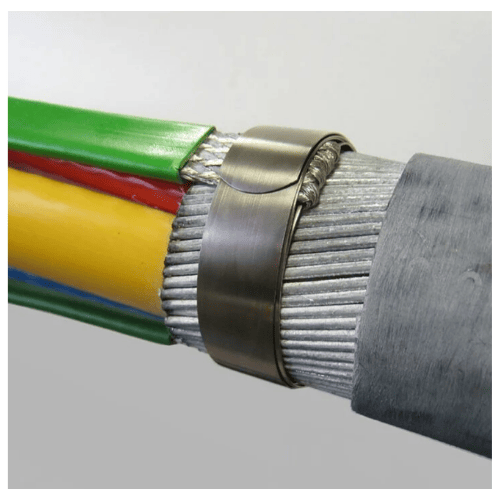

2. Cable Jointing

• Secure copper braids or mesh around the neutral conductor or cable screen

• Compatible with heat shrink, cold shrink, and resin-based joint kits

• Ensures long-term mechanical stability and excellent electrical contact

3. Industrial & OEM Cable Systems

• Suitable for industrial machines, office automation, and transportation cable systems

• Supports high-cycle retraction and tensioning applications

• Compact and durable, fitting tight enclosures while maintaining consistent performance

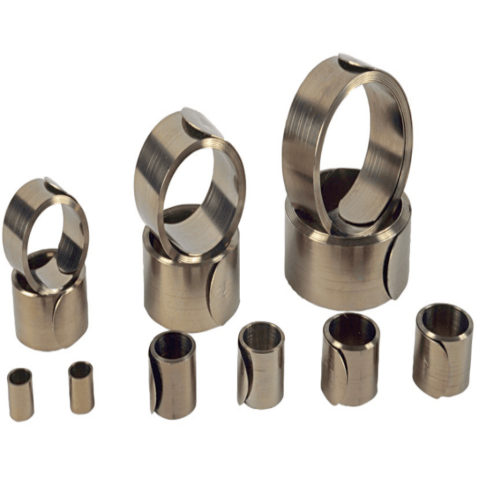

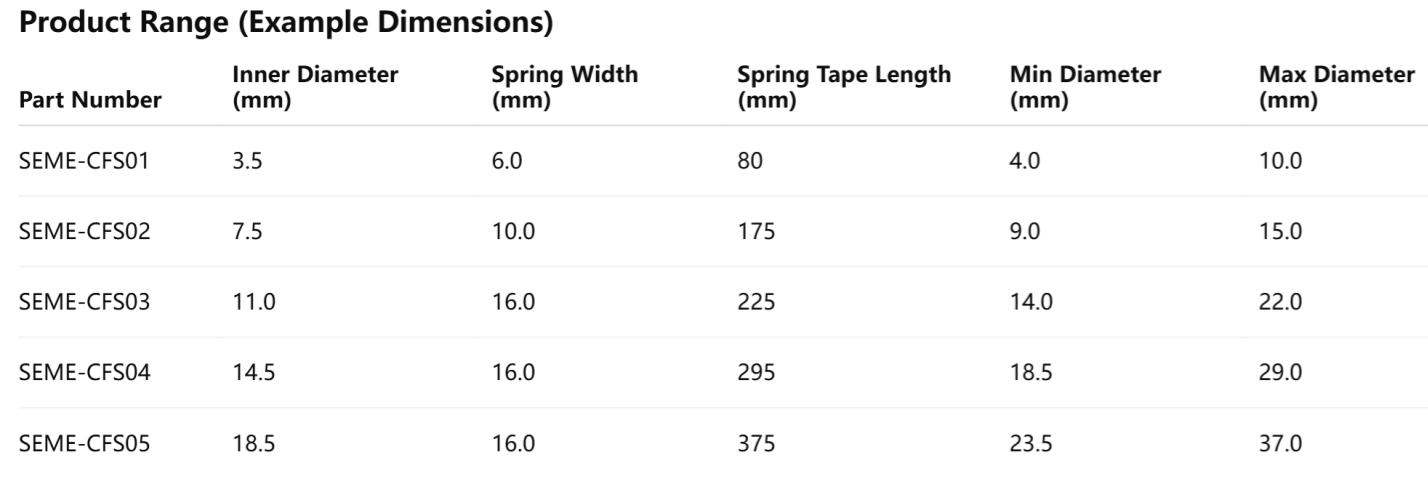

Product Range (Example Dimensions)

Why Choose SEME Constant Force Springs

• High precision & uniform force for reliable electrical and mechanical contact

• Durable stainless steel construction for long-term performance

• OEM & custom solutions available to meet specific industrial requirements

• Compatible with all common cable screens and armour types

• Long-term supply and tooling support for strategic procurement

Application Note (Installation Example)

1. Position the copper braid or cable screen onto the cable sheath.

2. Secure with one turn of the SEME constant force spring.

3. Bend the braid back over the first turn and secure with the remainder of the spring.

4. Optional: apply one half-lap layer of PVC or insulating tape over the spring for added protection.

This ensures uniform contact, mechanical stability, and reliable grounding.
