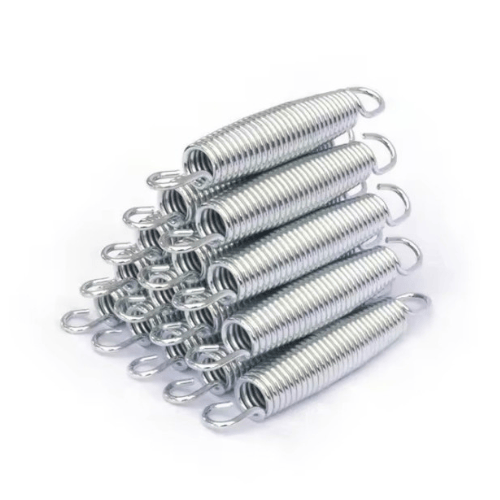

Galvanized Trampoline Springs – Heavy-Duty Extension Springs Manufacturer
Galvanized Trampoline Springs – Heavy-Duty Extension Springs for Trampolines
High-quality galvanized trampoline springs for safe, smooth bounce and long outdoor life. Heavy-duty construction, corrosion-resistant coating, and secure hook ends. Factory direct pricing.
What Are Galvanized Trampoline Springs?

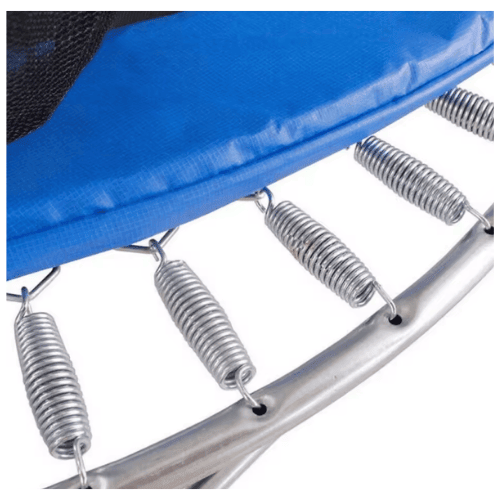

Galvanized trampoline springs are extension springs that connect the trampoline frame to the jumping mat. They stretch when you jump, storing and releasing energy to create the bounce.
The galvanized coating (zinc layer) protects the spring from rust and corrosion – critical for outdoor use in rain, sun, and humidity.
At Dongguan Seme Precision Hardware Co., Ltd. , we manufacture custom galvanized trampoline springs for trampoline brands, replacement parts suppliers, and OEM customers worldwide.
Why Trampoline Springs Need Galvanization

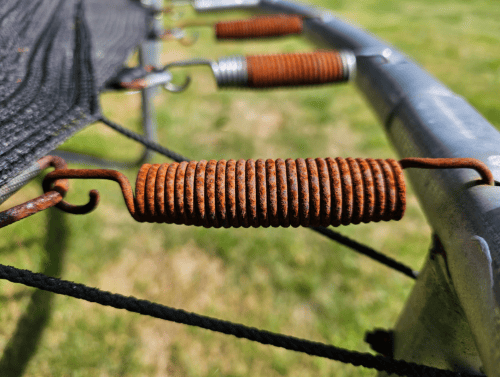

Trampolines live outdoors. Rain, morning dew, and humidity will cause uncoated steel springs to rust within weeks.
Environment
| Uncoated Spring | Galvanized Spring | |
Outdoor / Humid | Rust in 2-4 weeks | 2-5+ years |
Coastal / Salty | Rust in 1-2 weeks | 1-3 years (thick coating) |
Indoor / Dry | 6-12 months | 10+ years |
Galvanized springs resist rust 30-40% better than untreated steel – which means safer jumps and longer trampoline life.
vs
Key Features of Our Trampoline Springs
Feature
| Benefit | |
Galvanized Finish | Rust-proof for outdoor use – hot-dip or electro-galvanized |
Heavy-Duty Steel | High carbon spring steel (65Mn / Hard Drawn) for elasticity and strength |
Secure Hook Ends | Full loops or custom hooks on both ends – easy installation, secure attachment |
Consistent Tension | Smooth, predictable bounce – no dead spots |
Fatigue Resistant | Withstands thousands of jump cycles without permanent stretch |
Weather Resistant | Withstands sun, rain, snow, and temperature changes |
Technical Specifications – Fully Customizable
Parameter
| Options | |
Material | 65Mn spring steel, Hard Drawn carbon steel |
Wire Diameter | 2.0mm – 4.5mm (typical for trampolines) |
Spring Length (hook to hook) | 100mm – 250mm (4" to 10") |
Outer Diameter | 15mm – 35mm |
Coil Count | 15 – 40 coils (varies by length) |
End Type | Full loop both ends, or extended hook + loop |
Surface Finish | Electro-galvanized OR Hot-dip galvanized |
Plating Thickness | 8-25 μm (depending on environment) |

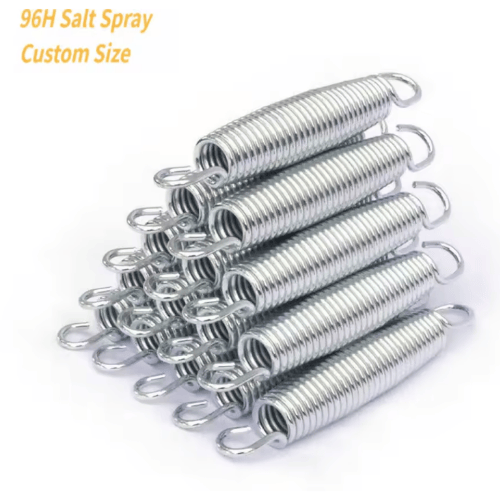

Salt Spray Test | 48-120 hours (ASTM B117) |
Galvanization Options for Trampoline Springs
| Type | Thickness | Appearance | Best for |
Electro-Galvanized | 5-12 μm | Bright, shiny silver | Home trampolines, decorative |
Hot-Dip Galvanized | 15-25 μm | Dull gray, thicker coating | Commercial, coastal, extreme outdoor |
Zinc + Chromate | 8-15 μm | Blue or yellow tint | Enhanced rust protection |
Recommendation: For home trampolines in normal environments, electro-galvanized is sufficient. For coastal areas or commercial use, choose hot-dip galvanized.

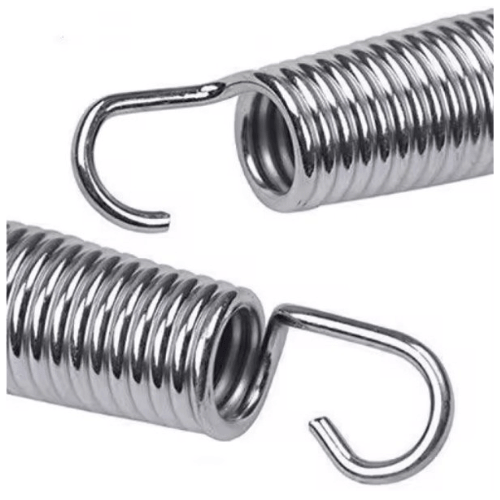

Hook End Types for Trampoline Springs
Trampoline springs typically use full loops on both ends, but some designs require extended hooks.
| End Type | Description | Best For |
Full Loop (both ends) | 360° circle on each end | Standard trampolines – fits most frames |
Extended Hook + Loop | One end has longer straight section | Round tube frames with top slots |
Tapered End | One end has tighter coils | Better grip on mat attachment points |
Note: We can customize hook length and shape to match your specific frame design. Send us your original spring for exact duplication.

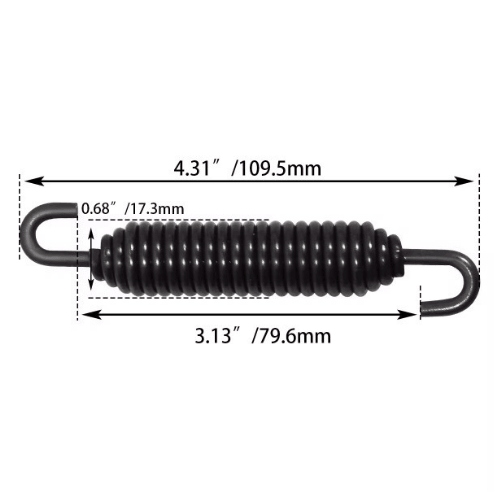

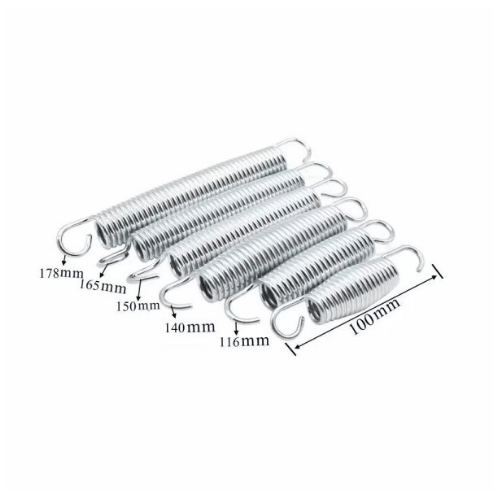

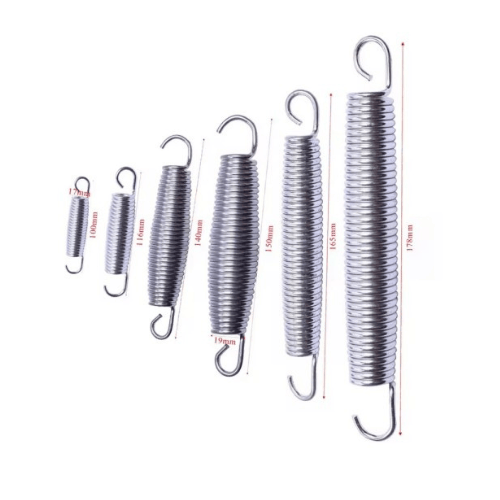

Trampoline Spring Sizes – Common Standards
| Length (hook to hook) | Wire Diameter | Outer Diameter | Typical Use |
4" (102mm) | 2.5mm | 18mm | Small kids' trampolines |
5.5" (140mm) | 2.8mm | 22mm | Fitness / indoor trampolines |
7" (178mm) | 3.0mm | 25mm | Standard backyard trampolines |
8.9" (225mm) | 3.15mm | 28mm | High-performance / rectangle trampolines |
6.5" (165mm) | 3.2mm | 30mm | Heavy-duty round trampolines |
Custom sizes available – Send your sample or drawing for a quote.

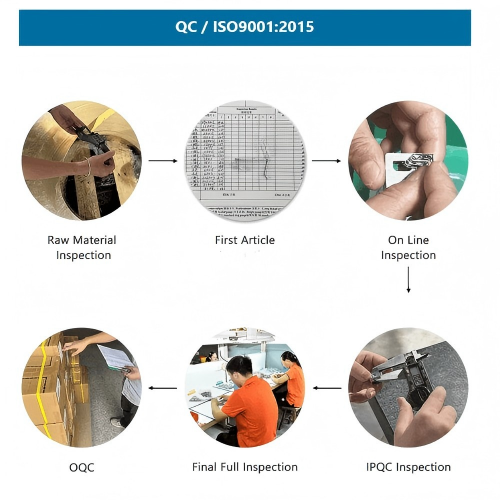

Quality Control – Every Batch Tested
| Test | Standard | Frequency |
Salt Spray Test | ASTM B117 | Per batch |
Plating Thickness | ASTM B487 | Per batch |
Load/Deflection | Custom spec | 100% |
Hook Strength Test | Pull test | Per batch |
Dimensional Check | Per drawing | 100% |
✅ Test reports included with every shipment
Why Choose Seme Hardware for Trampoline Springs?
✅ 10+ years experience – Specialized in galvanized extension springs
✅ In-house plating – Full control of coating quality
✅ High-grade steel – 65Mn / Hard Drawn carbon steel for consistent tension
✅ Custom sizes – Made to your exact length, wire diameter, and hook type
✅ Fast samples – 5-7 days for prototypes
✅ Competitive pricing – Factory direct, no middlemen
✅ ISO 9001 certified

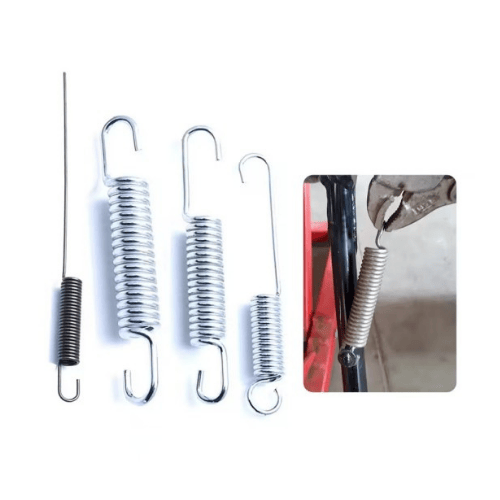

Applications Beyond Trampolines
Our galvanized extension springs are also used in:
Exercise equipment – Fitness trampolines, resistance machines
Garage doors – Tension springs for door mechanisms
Agricultural equipment – Tension mechanisms, gates
Industrial machinery – Conveyor systems, tensioners
Furniture – Recliner mechanisms, folding chairs
How to Order Custom Trampoline Springs
Send your specifications – Length (hook to hook), wire diameter, outer diameter, hook type, quantity
Engineering review – DFM feedback and material recommendation
Sample production – 5-7 days for prototypes
Mass production – 10-20 days (up to 500,000 pcs/month)

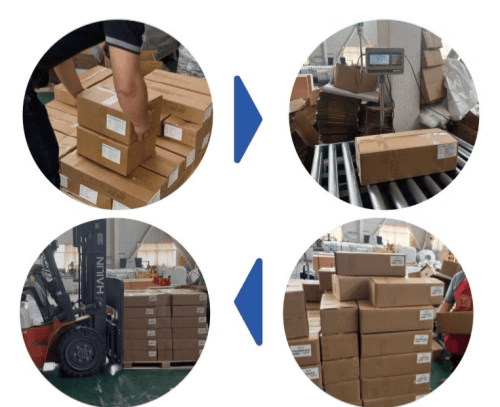

Quality inspection & shipping – Test reports included
FAQ – Trampoline Springs
How long do galvanized trampoline springs last?
With proper galvanization (8-15μm), expect 3-5 years outdoors. Hot-dip galvanized lasts 5-10 years.What's the difference between electro-galvanized and hot-dip galvanized?
Electro-galvanized has a bright, thin coating – good for normal use. Hot-dip has a thicker, dull gray coating – better for coastal or extreme outdoor conditions.How do I measure a trampoline spring for replacement?
Measure from the inside of one hook to the inside of the opposite hook. Also measure wire diameter and outer diameter.What wire material is best for trampoline springs?
Hard drawn carbon steel or 65Mn spring steel – both offer excellent elasticity and fatigue resistance.Can you make custom hook lengths?
Yes. Some trampoline frames require extended hooks for proper fit. Send us your original spring for exact duplication.What is your MOQ for trampoline springs?
Standard sizes: 500-1,000 pcs. Custom sizes: 1,000-5,000 pcs. Sample quantities (10-50 pcs) available.Do you provide replacement springs for specific brands?
Yes – we can duplicate springs for any brand. Send us a sample or drawing for a quote.
